Alfa C
SensEver Alfa-C: Unlocking ambient thermal energy to deliver long-lasting, reliable power in harsh environments.
Highlights:
Convert heat to power for sensors and IoT devices
Rethink Power Supply

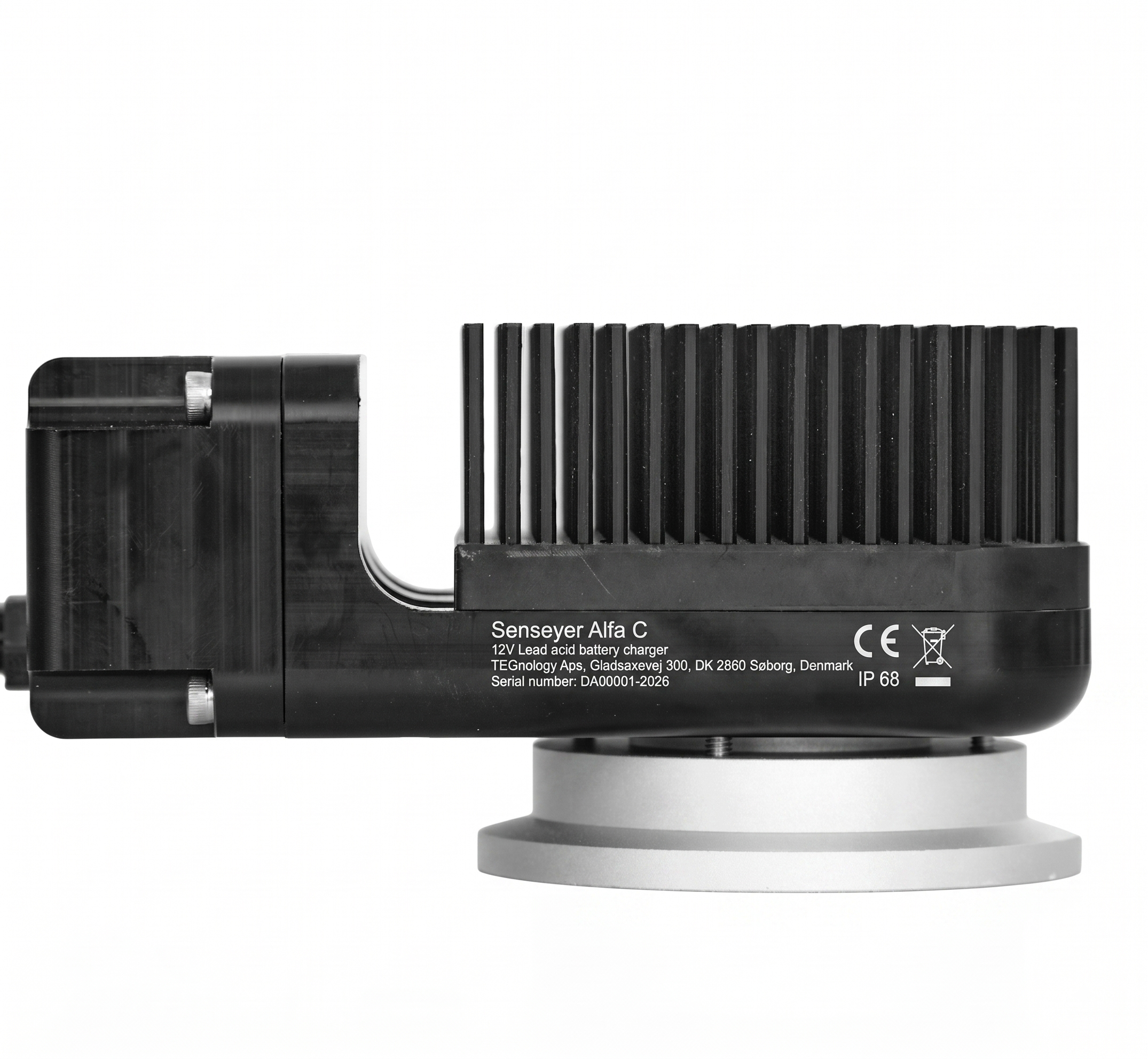

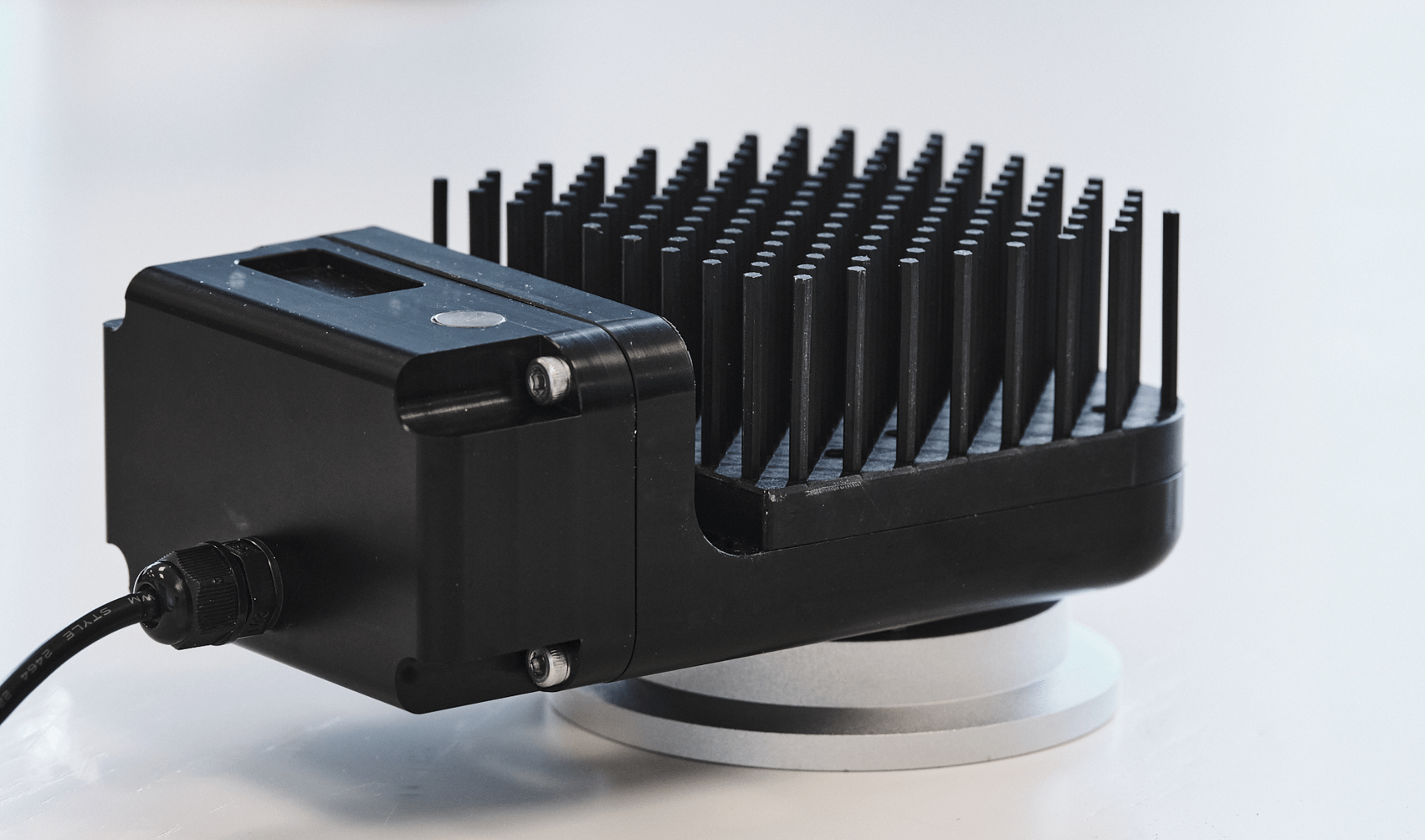

SensEver Alfa C
How it works: A thermoelectric generator mounted between the pipe wall and ambient air converts the natural temperature differential (ΔT) directly into electricity.
No change of battery. No wiring. No external power source – just the process heat, already there.
01 Zero maintenance visits The sensor is powered for as long as the pipe is in service – no scheduled battery swaps, ever. | 02 No batteries to manage Eliminates sourcing, shipping, stocking, and disposing of batteries across your sensor fleet. |
03 Lower cost of ownership Removing recurring service calls cuts labor, logistics, and unplanned downtime at scale. | 04 Reaches hard-to-access points No physical access needed for upkeep – deploy on embedded, remote, or hazardous pipe runs safely. |
05 Self-powered, no external input Runs entirely on the pipe-to-air temperature difference – no mains power or charging infrastructure. | 06 Lower environmental footprint Fewer disposable batteries in the field supports plant sustainability and waste-reduction targets. |
Technical specifications
| Max charging voltage: | 12 V | Min. operational ΔT: | 25 K |
| Re-charge trigger voltage: | 13.2 V | Full functionality min. ΔT: | 30 K |
| Power output at ΔT 27°C: | 11.5 mW | Operational max. surface temp.: | 135°C |
| Power output at ΔT 47°C: | 40.2 mW | Max. ambient temp.: | 80°C |
| Power output at ΔT 76°C: | 115.0 mW | Ingress Protection: | IP68 |
| External supply voltage: | 10.5 V | Max. stand-up height: | 150 mm |
| Cable specification: | H03VV-F 2×0.75 mm² (1m) | Diagnostic feedback time: | < 10 min |
CHARGING POWER
| ΔT [K] | Charging power [mW] |
|---|---|
| 17 | 3.8 |
| 27 | 11.5 |
| 37 | 21.8 |
| 47 | 40.2 |
